EXF50M-A0-2
EXF50M-A0-2
RAN Master Metal Series
EXF50M-A0-2 model pump specifications and price
Technical Specifications
| Ratio | 1:1 |
| Maximum Speed | 145 cpm |
| Maximum Capacity | 596 lt/min |
| Fluid Inlet-Outlet Size | 2 inch |
| Connection type | Screw (NPT) |
| Max. Discharge Pressure | 8 Bar |
| Body Material | Aluminium |
| Diaphragm Material | Buna-N (NBR) |
| Air Inlet Size | 1/2 inch |
| Weight | 34.5 kg |
Product Details

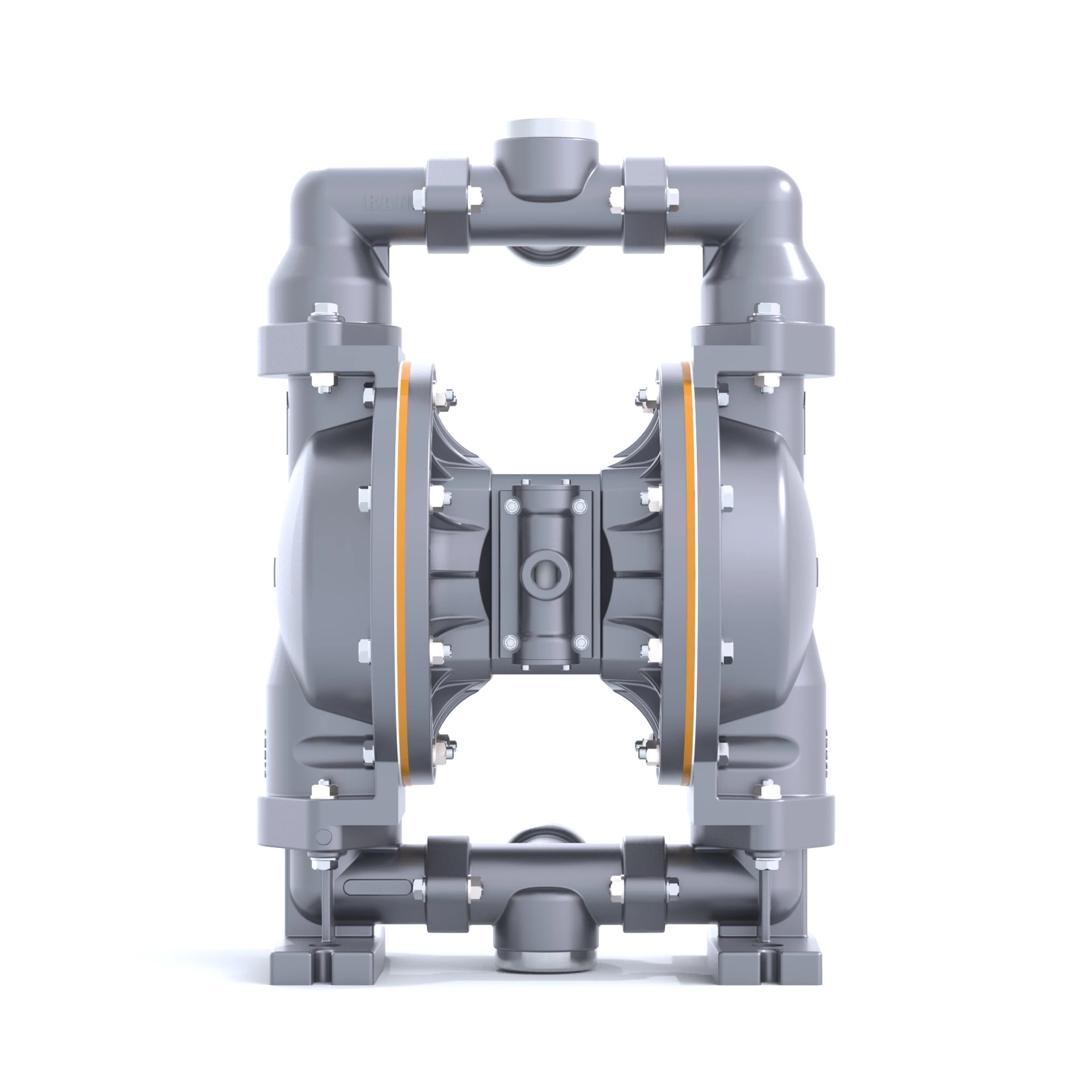

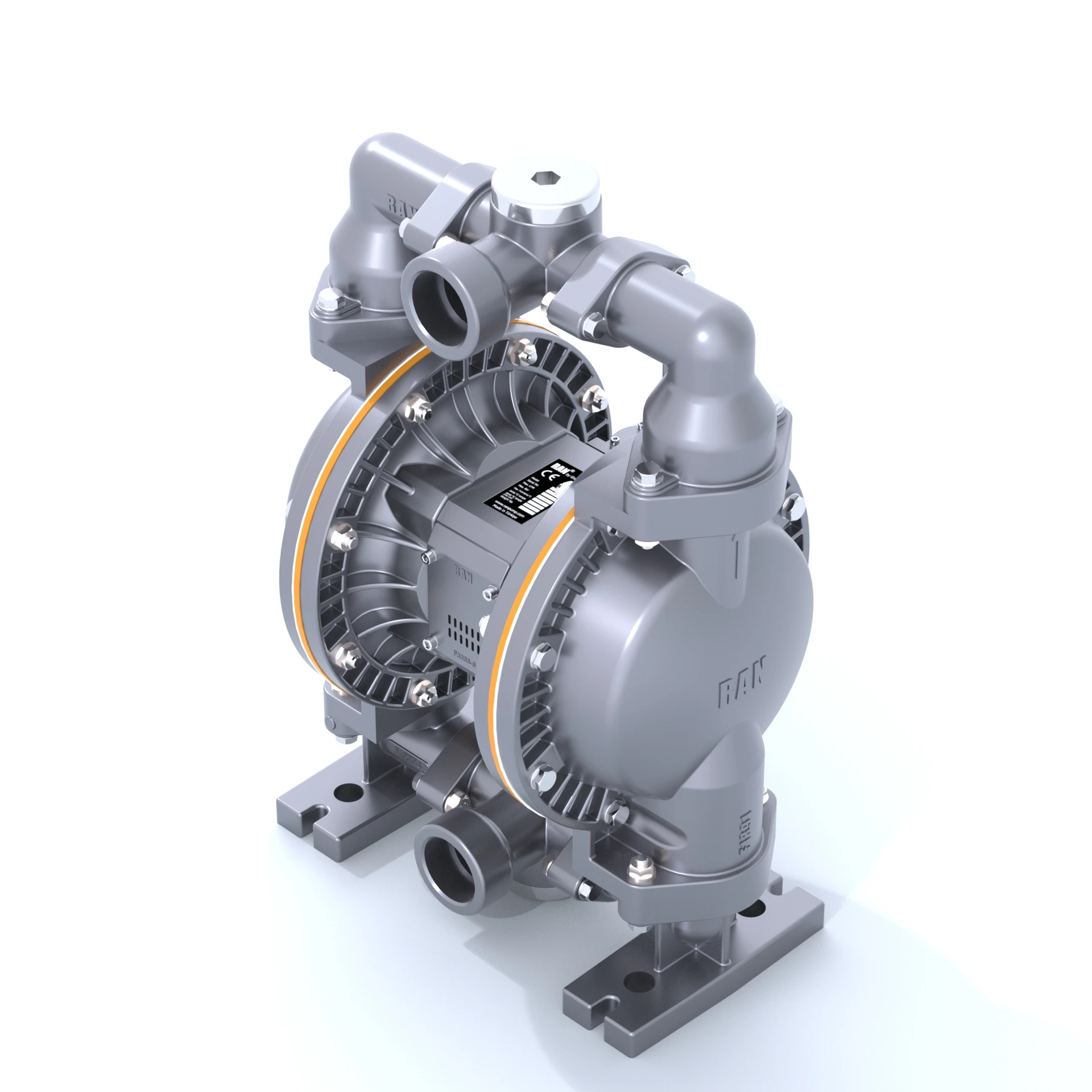

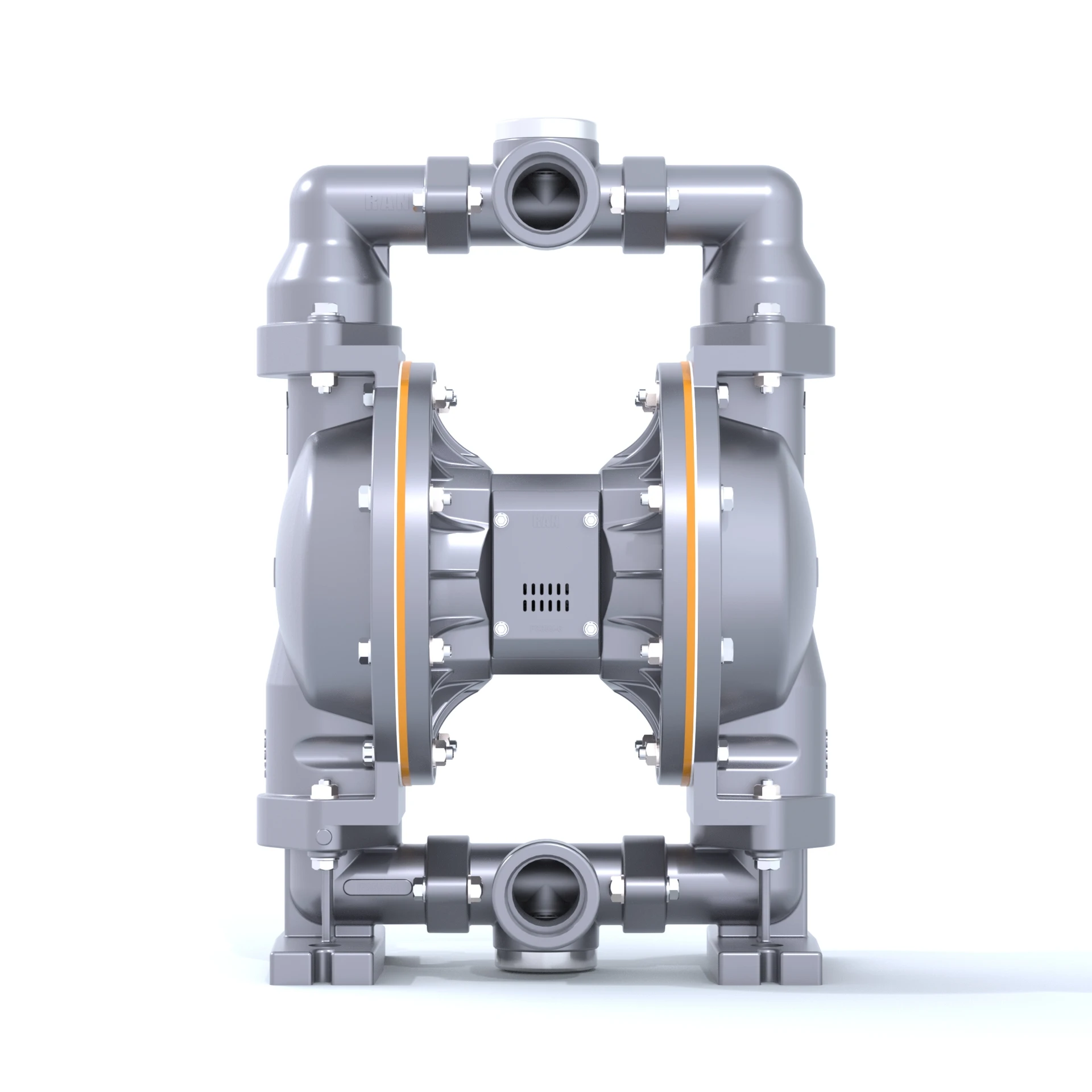

EXF50M-A0-2 model pump
