EXD25M-SCS
EXD25M-SCS
RAN Master Metal Series
EXD25M-SCS model pump specifications
Technical Specifications
| Ratio | 1:1 |
| Maximum Speed | 280 cpm |
| Maximum Capacity | 208 lt/min |
| Fluid Inlet-Outlet Size | 1 inch |
| Connection type | Screw (NPT) |
| Max. Discharge Pressure | 8 Bar |
| Body Material | Stainless Steel 316 |
| Diaphragm Material | TPE (Santoprene®) |
| Air Inlet Size | 3/8 inch |
| Weight | 20.7 kg |
Product Details

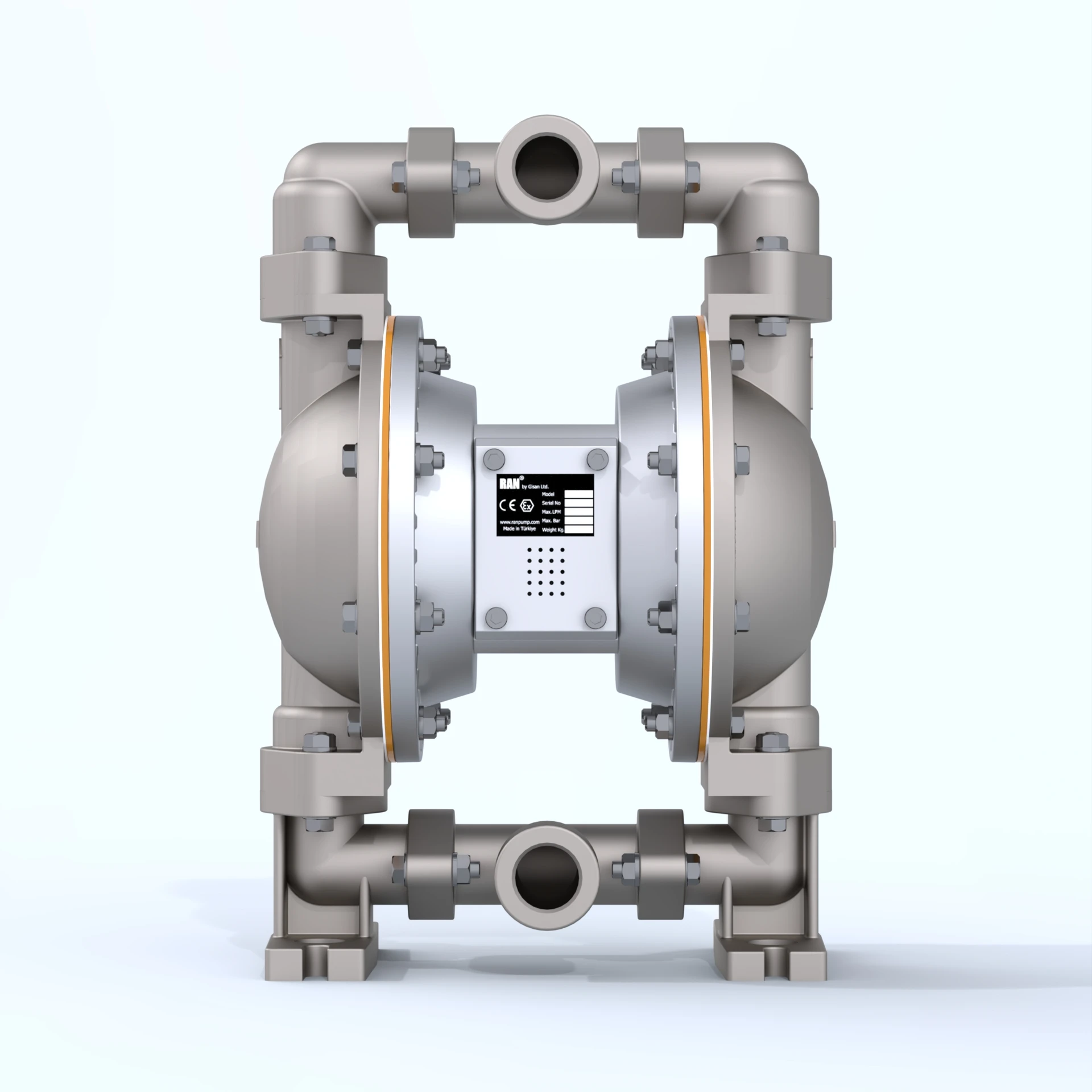

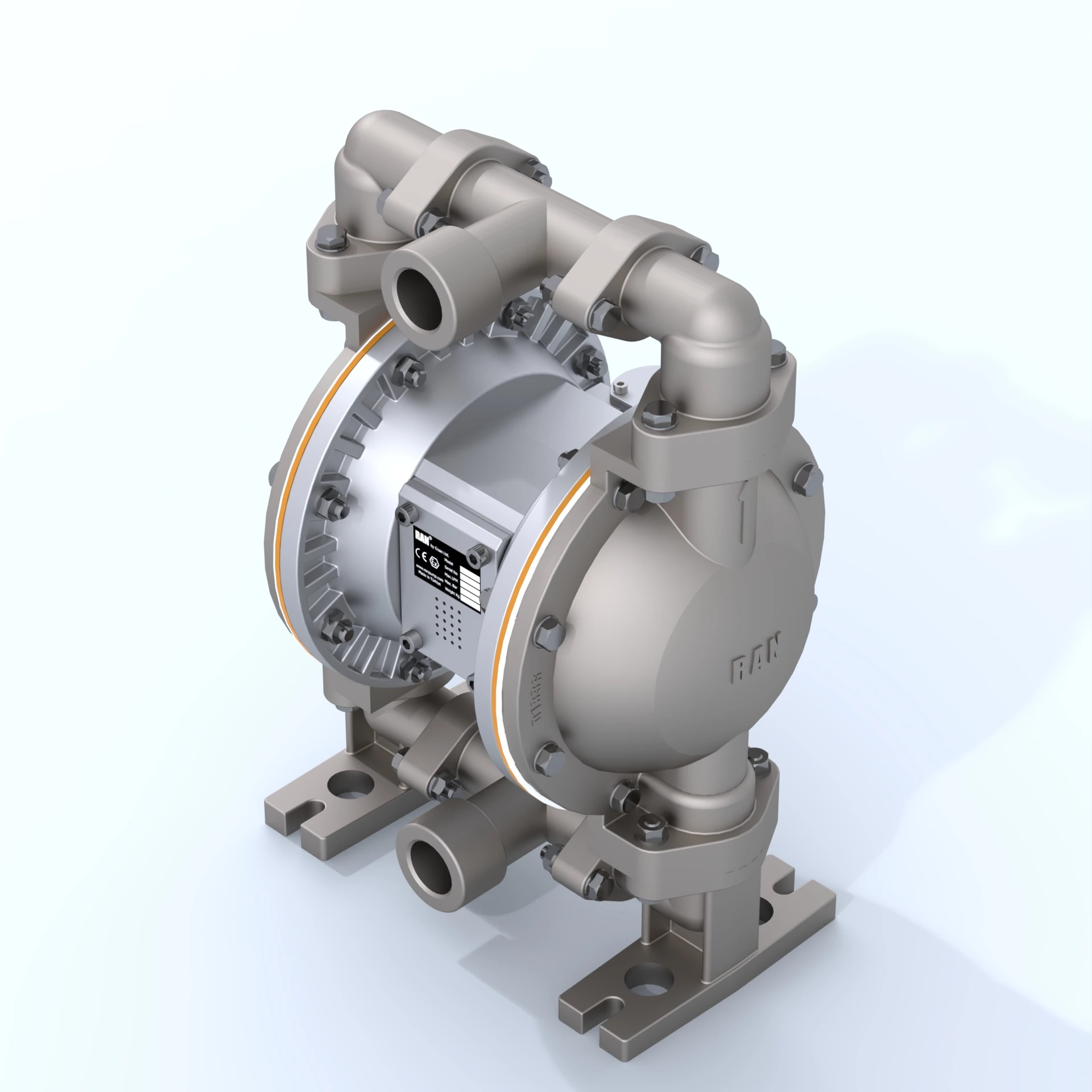

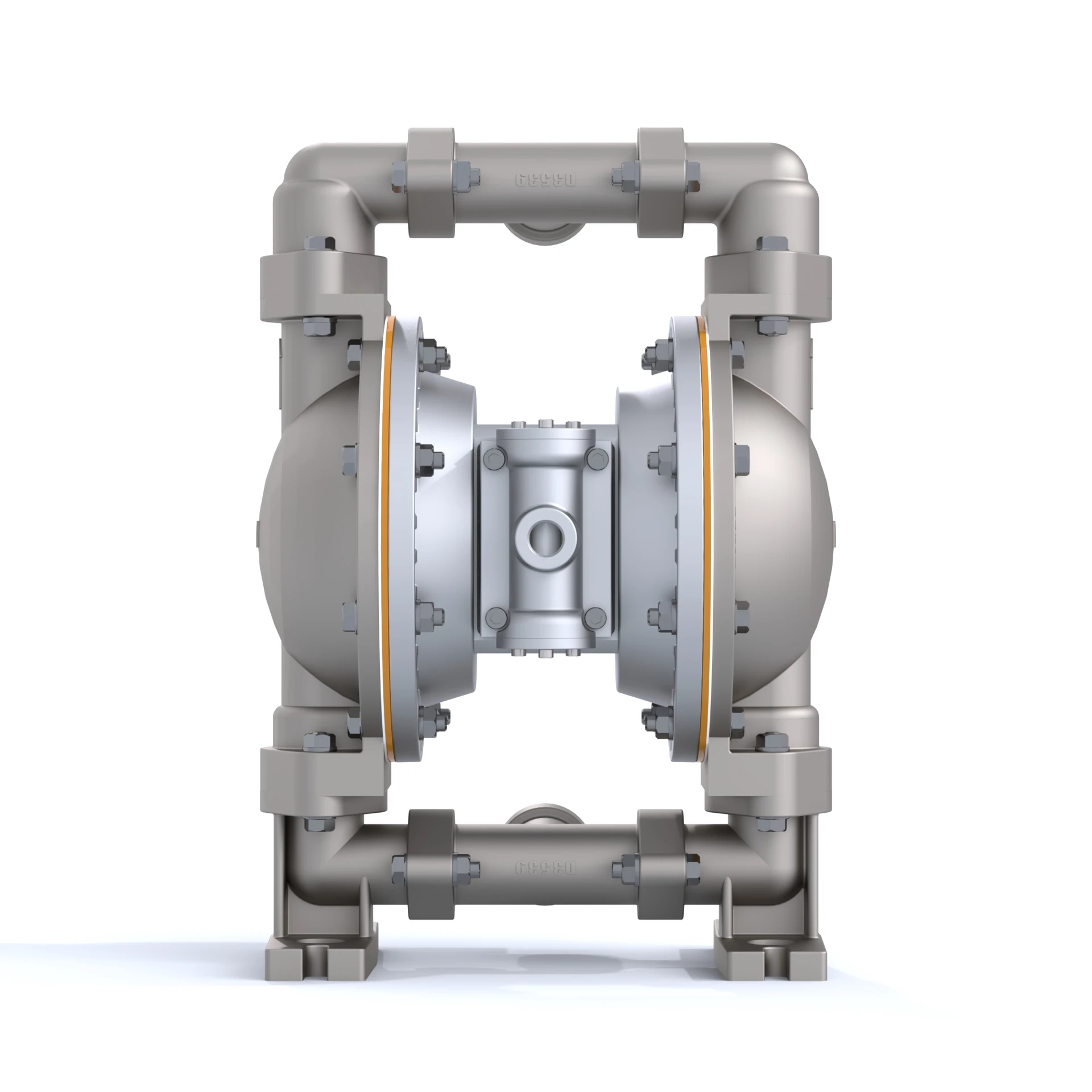

EXD25M-SCS model pump
