EXA8-P3-1
EXA8-P3-1
RAN Master Plastic Series
EXA8-P3-1 model pump specifications
Technical Specifications
| Ratio | 1:1 |
| Maximum Speed | 250 cpm |
| Maximum Capacity | 18 lt/min |
| Fluid Inlet-Outlet Size | 1/4 inch |
| Connection type | Screw (NPT) |
| Max. Discharge Pressure | 8 Bar |
| Body Material | Conductive Polypropylene |
| Diaphragm Material | TPE (Hytrel®) |
| Air Inlet Size | 1/8 inch |
| Weight | 1.2 kg |
Product Details

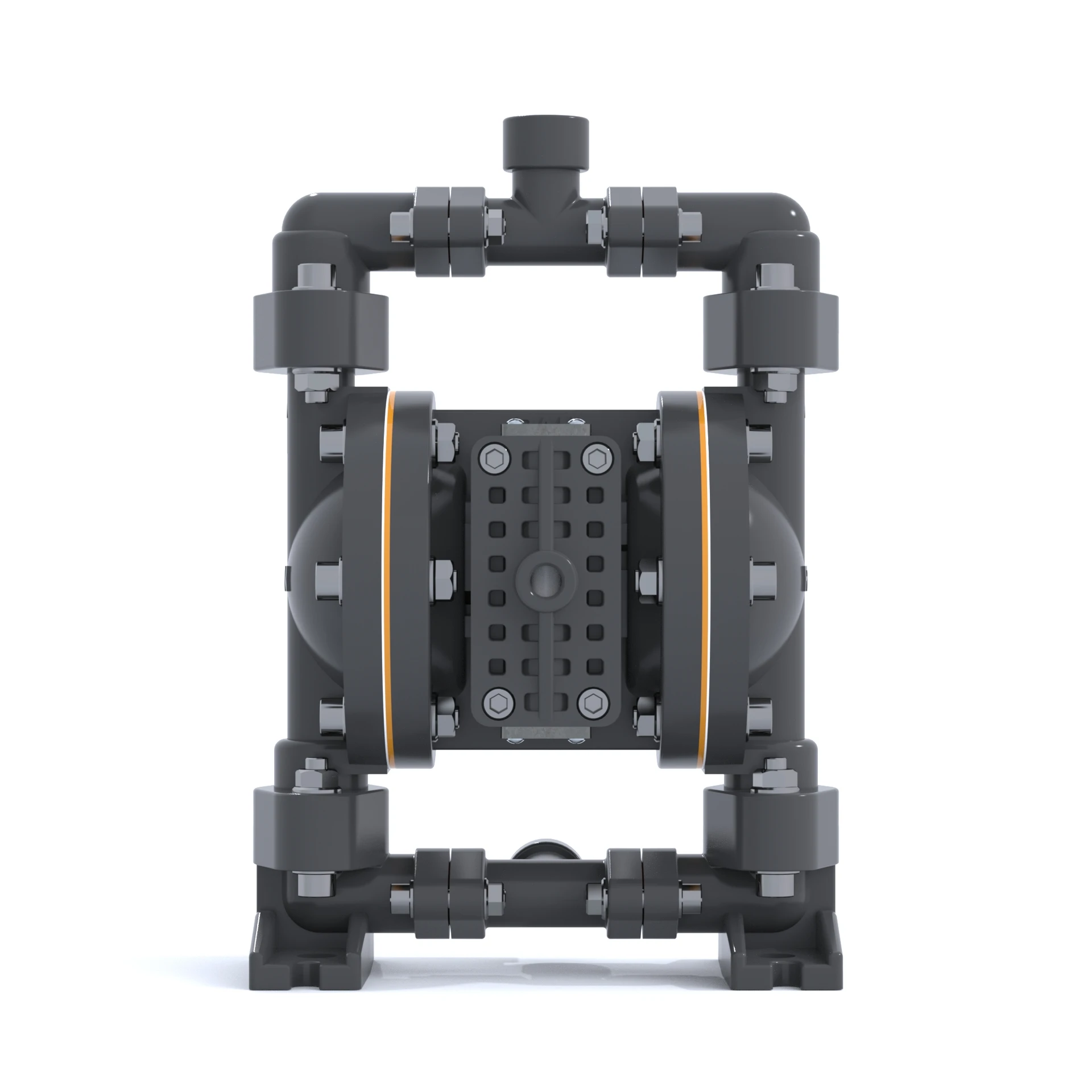

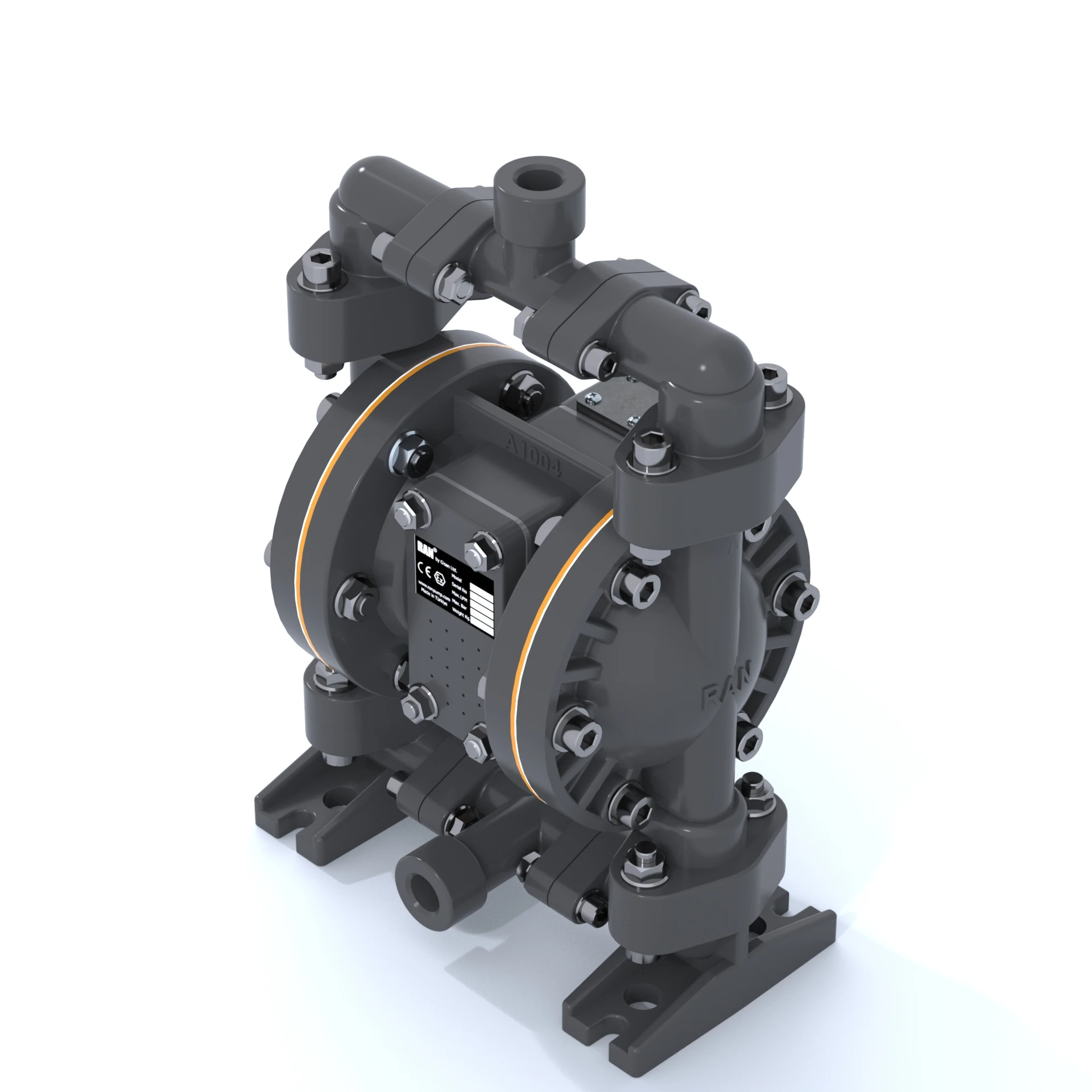

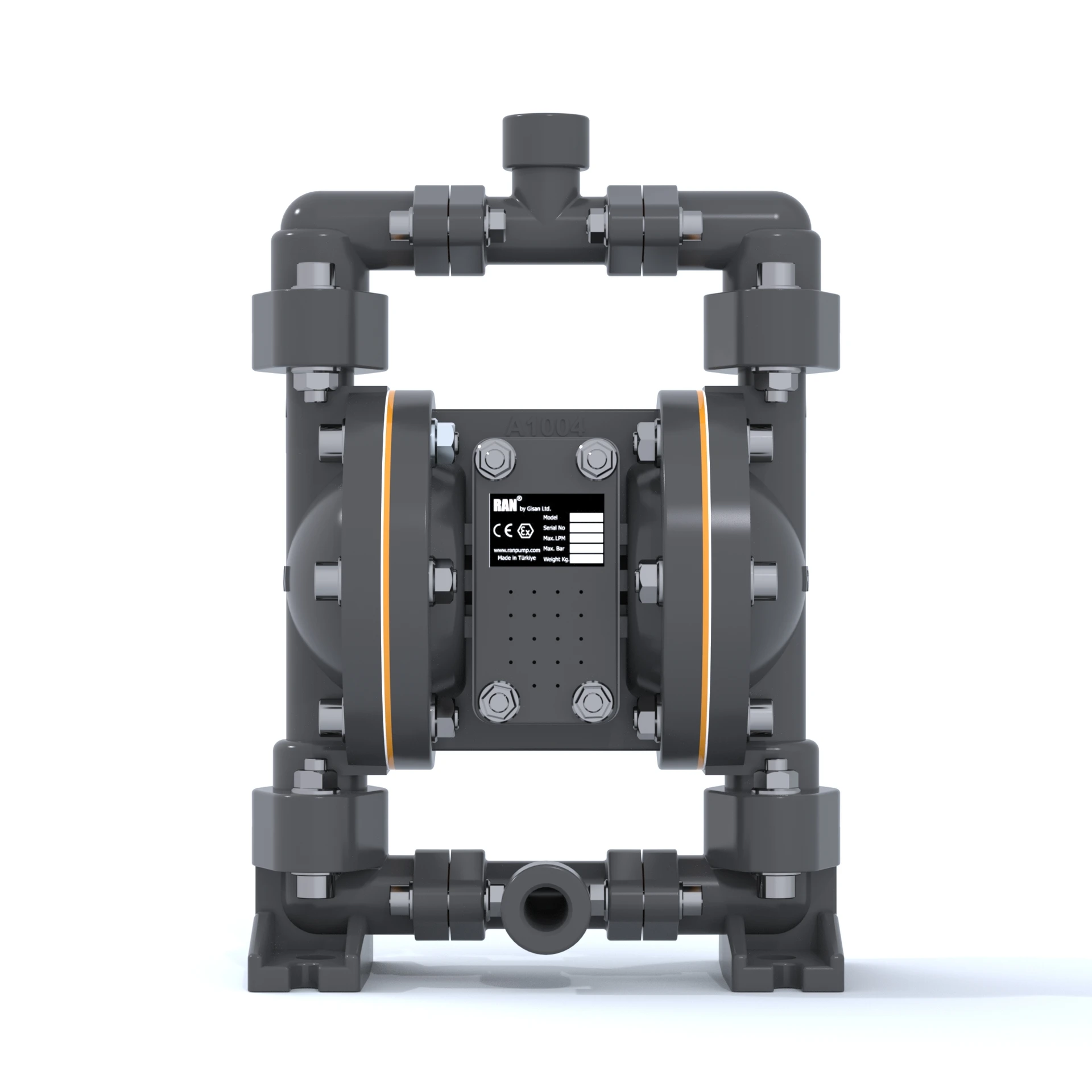

EXA8-P3-1 model pump
