AB15-A1
AB15-A1
RAN Advantage Series

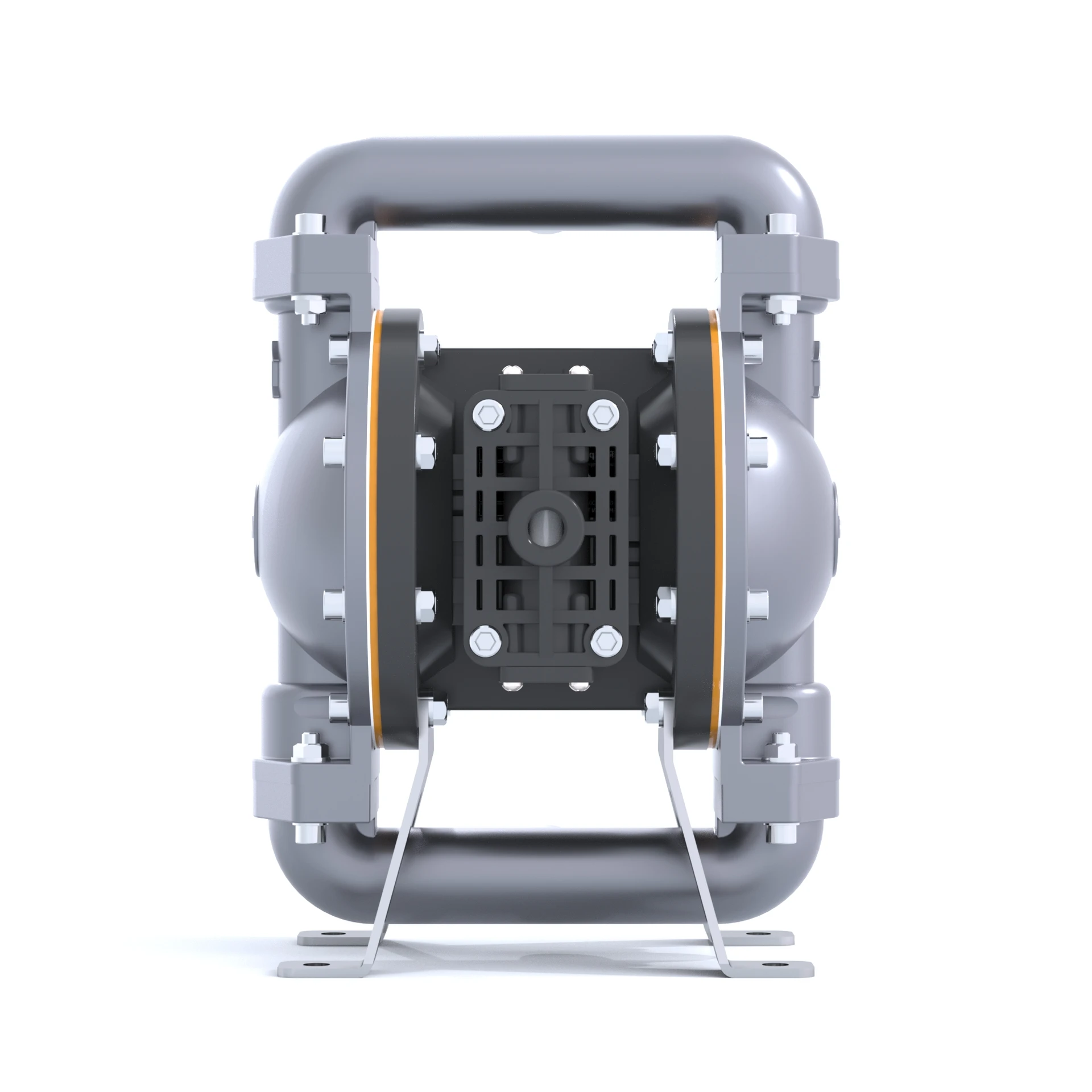

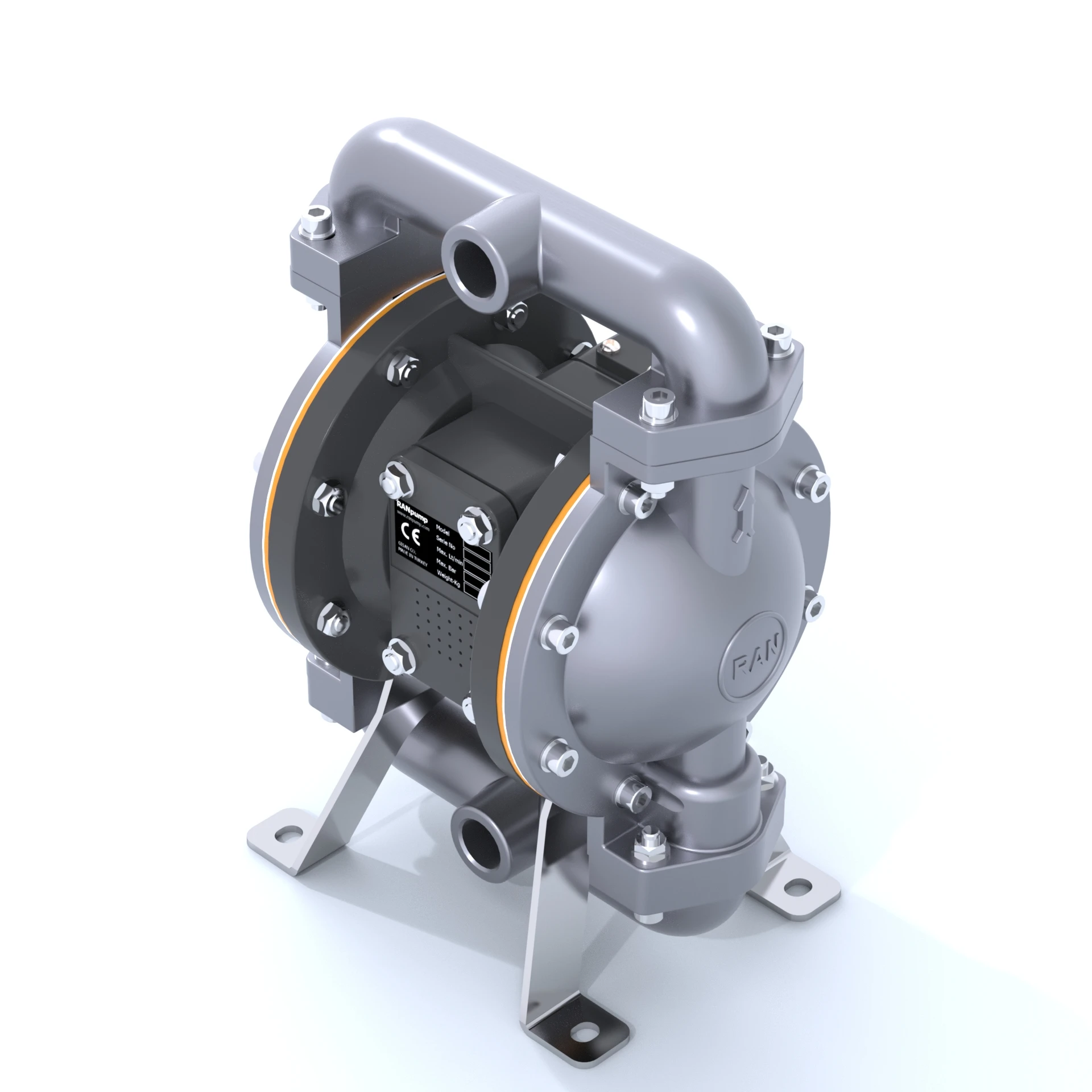

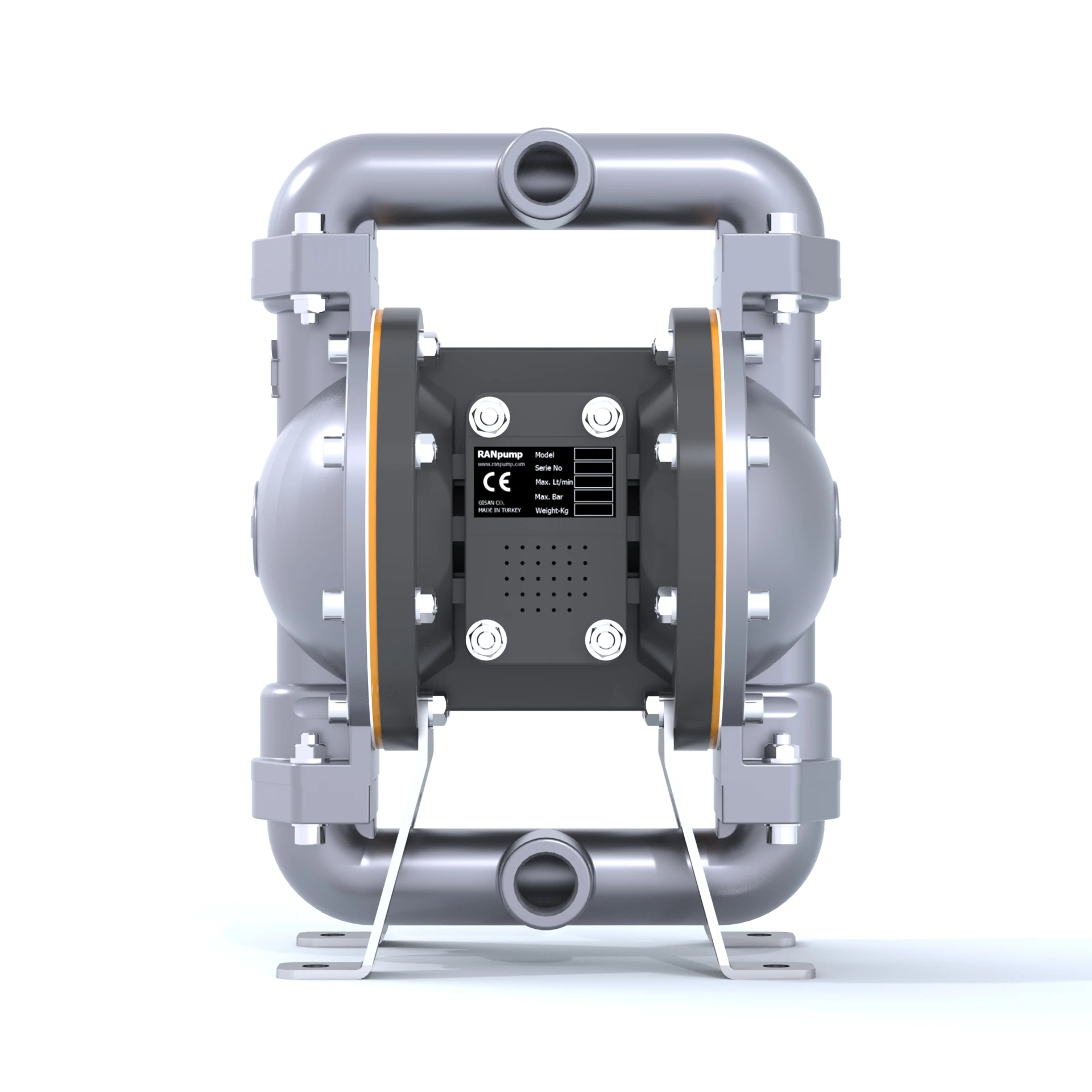

AB15-A1 model pump specifications
Technical Specifications
| Ratio | 1:1 |
| Maximum Speed | 432 cpm |
| Maximum Capacity | 60 lt/min |
| Fluid Inlet-Outlet Size | 1/2 inch |
| Connection type | Screw (NPT) |
| Max. Discharge Pressure | 8 Bar |
| Body Material | Aluminium |
| Diaphragm Material | PTFE (Teflon®) |
| Air Inlet Size | 1/4 inch |
| Weight | 3.5 kg |
Product Details
The AB15-A1 model offers a cost advantage that can compete with the lowest-priced pumps on the market, while guaranteeing higher quality and long-lasting performance.
- Not a disposable product, but an investment → Operates reliably for a long time with low maintenance costs.
- Superior performance over competitors → Higher flow rate and suction lift.
- Continuous operation → Non-stalling air valve and leak-free design maintain pressure and save air.
- Protects your liquid → No leakage from connection surfaces, preventing product loss.
- Durable body → Aluminum body manufactured using die-casting, providing high strength and robustness.
- Pressure-resistant design → Thicker body design compared to competitors ensures reliable performance under high pressure.
The Advantage Series Aluminum Pump goes beyond low-cost pumps, offering high performance, durability, and long-lasting quality together.
